OPERATIONS

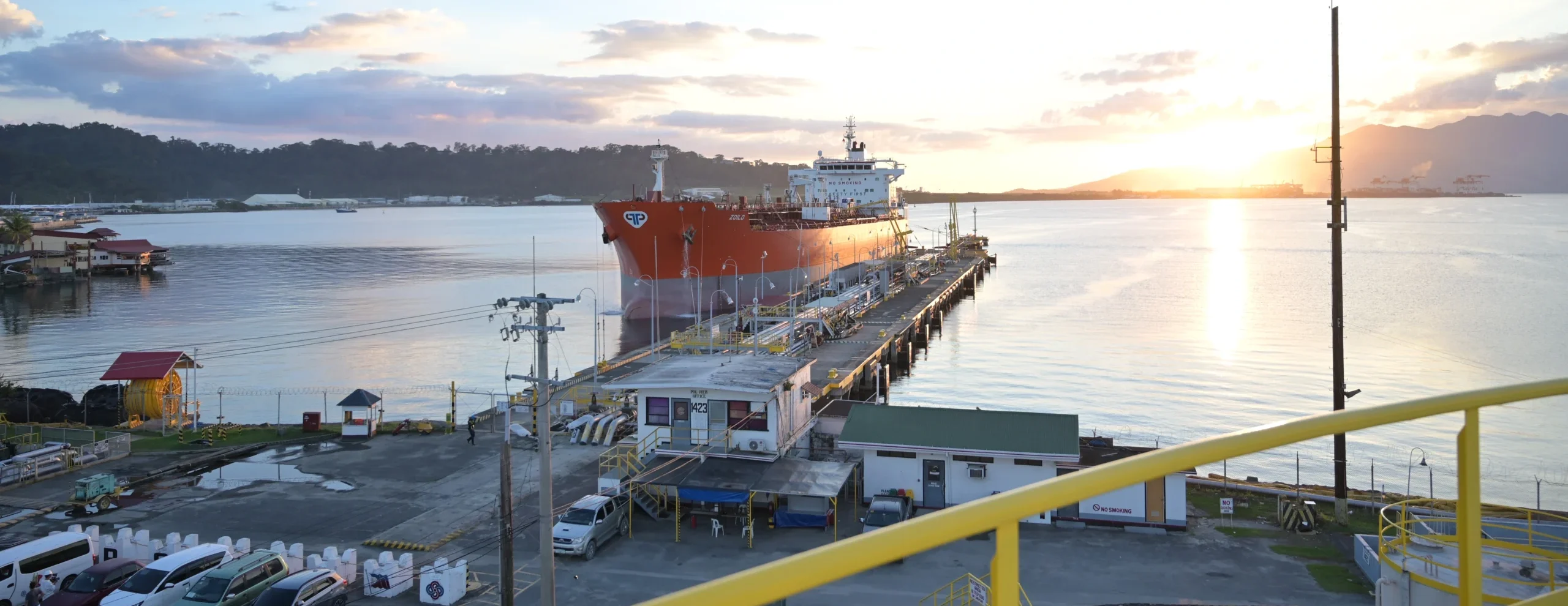

Marine Terminal
The Marine Terminal can handle import vessels and is designed to handle wide range of petroleum products. The facility features two fully equipped jetties, each fitted with marine loading arms and berthing stations for both loading and discharging operations.
The main jetty can accommodate vessels up to 50,000 DWT, while the secondary jetty supports vessels up to 6,400 DWT.
Pier 1 Dimensions & Particulars
PORT LIMITATIONS
PIER DATA
| DEPTH (Berth) | 13 meters (north side)* 13 meters (south side)* |
| BERTHING CAP | 50,000 DWT (max.) |
| MLA (PANTO.) | 4 × 8′ diameter |
| LOADING STNS. | 6 |
TANKER RECEIVING
| DRAFT | 12 meters |
| BCM | 100 meters Sta.5&6 |
| Manifold Height | 13.5 meters |
| Manifold Size | 8″ x 150 psi |
DISCHARGE RATE (Barrels per Hour)
| Gas Oil Line 1 | 12,500 |
| Gas Oil Line 2 | 12,500 |
| JET A-1 | 10,000 |
| Mogas Line 1 | 7,500 |
| Mogas Line 2 | 7,500 |
| Ethanol | 5,000 |
Pier 2 Dimensions & Particulars
PORT LIMITATIONS
PIER DATA
| DEPTH (Berth) | 12 meters (north side)* 13 meters (south side)* |
| BERTHING CAP | 6,400 DWT (max.) |
| MLA (PANTO.) | 2 x 8′ diameter |
| LOADING STNS. | 6 |
TANKER RECEIVING
| DRAFT | 11 meters, EK (max) |
| BCM | 55 meters |
| LOA | 116 meters |
| Manifold Height | 6 meters |
| Manifold Size | 8″ x 150 psi |
DISCHARGE RATE (Barrels Per Hour)
| Gasoil | 7,000 |
| JET A-1 | 5,000 |
| Mogas | 5,000 |
| Ethanol | 5,000 |

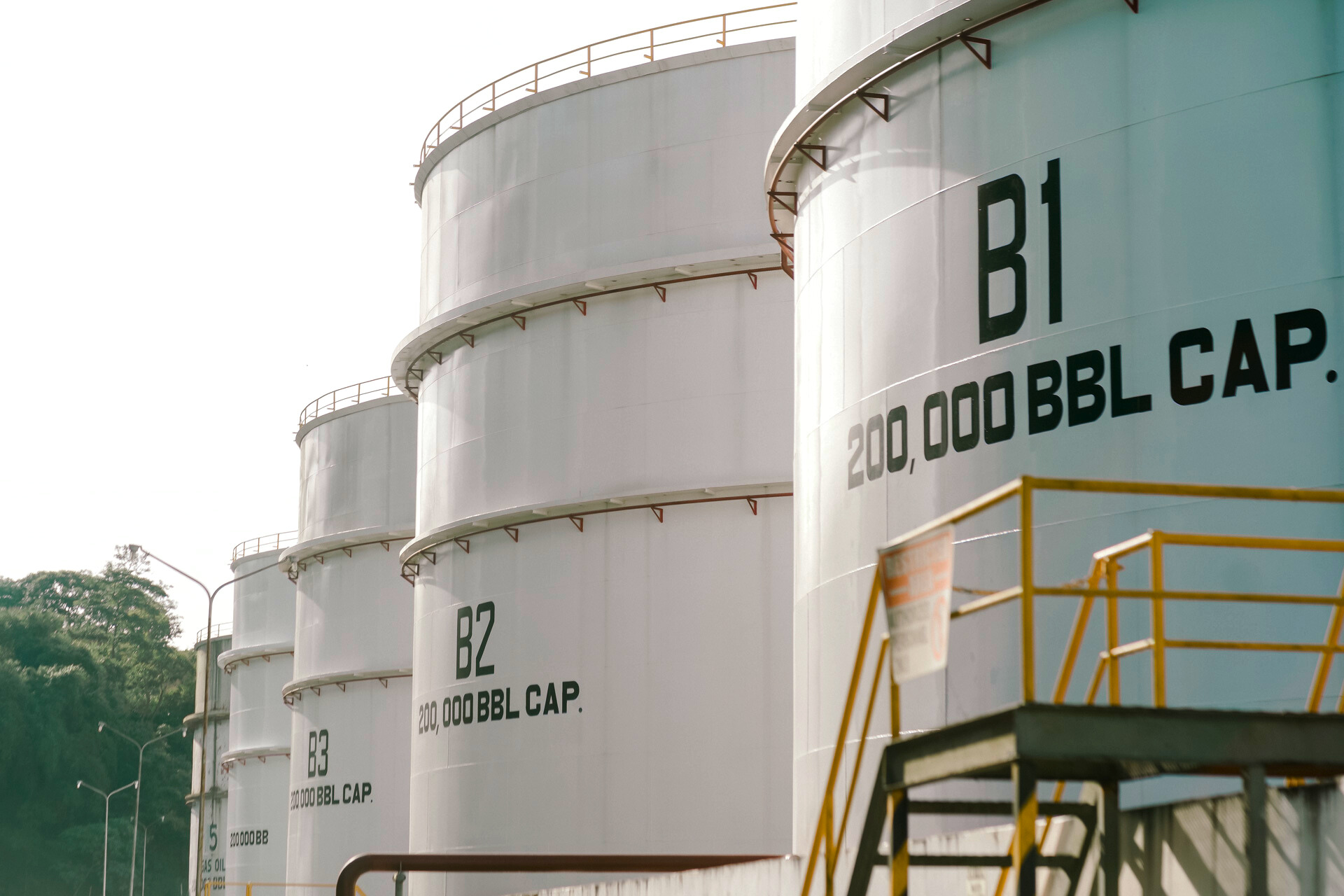

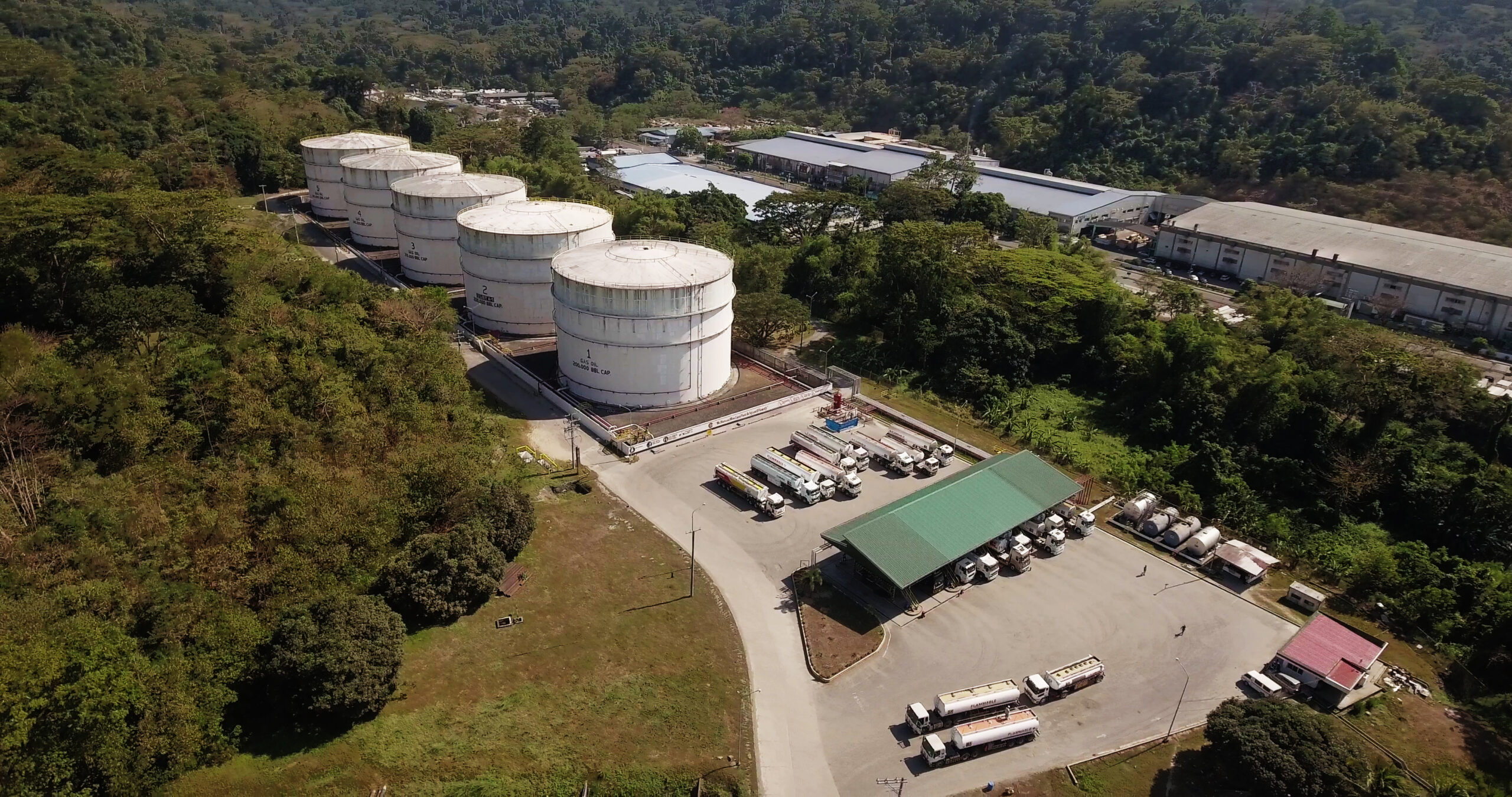

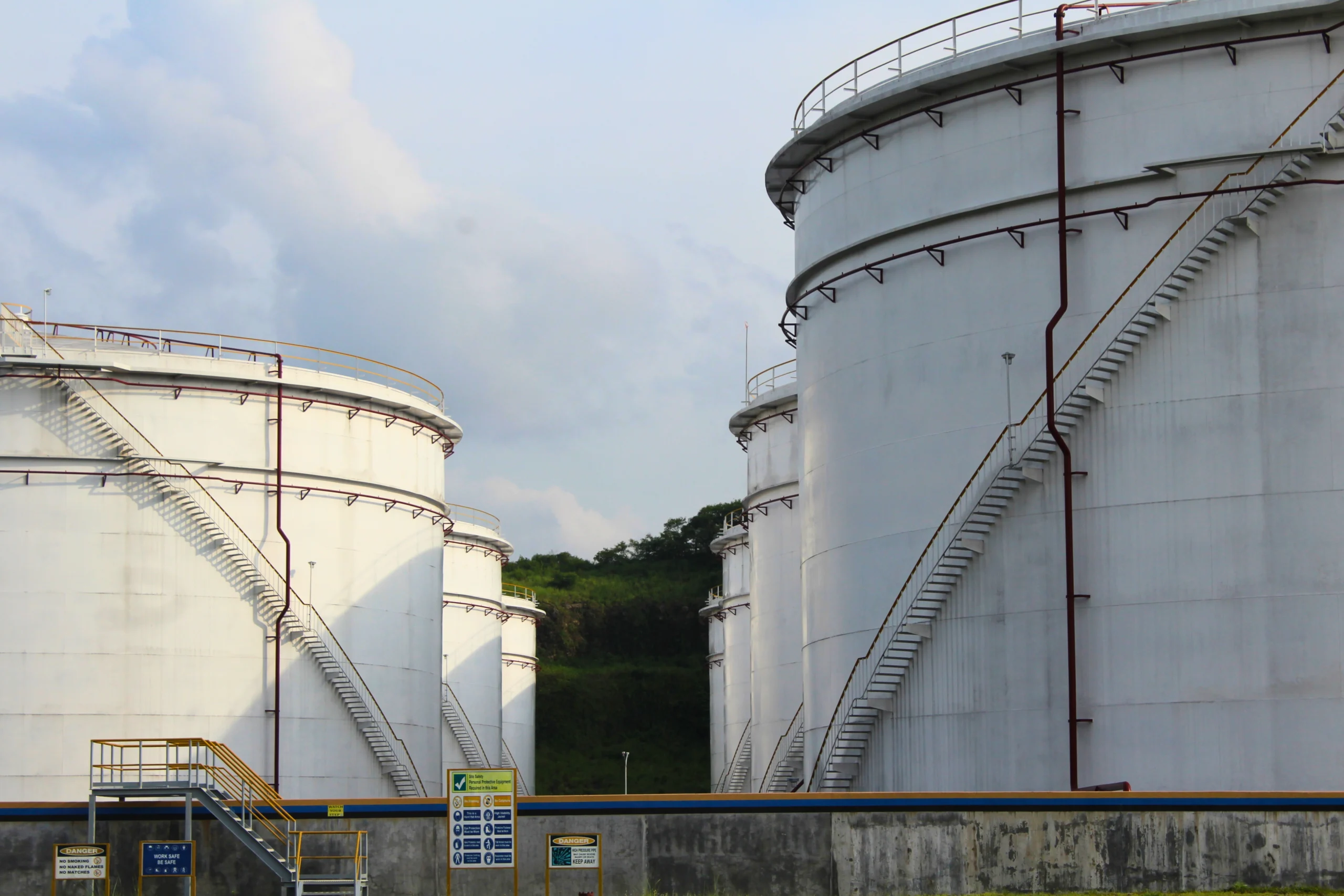

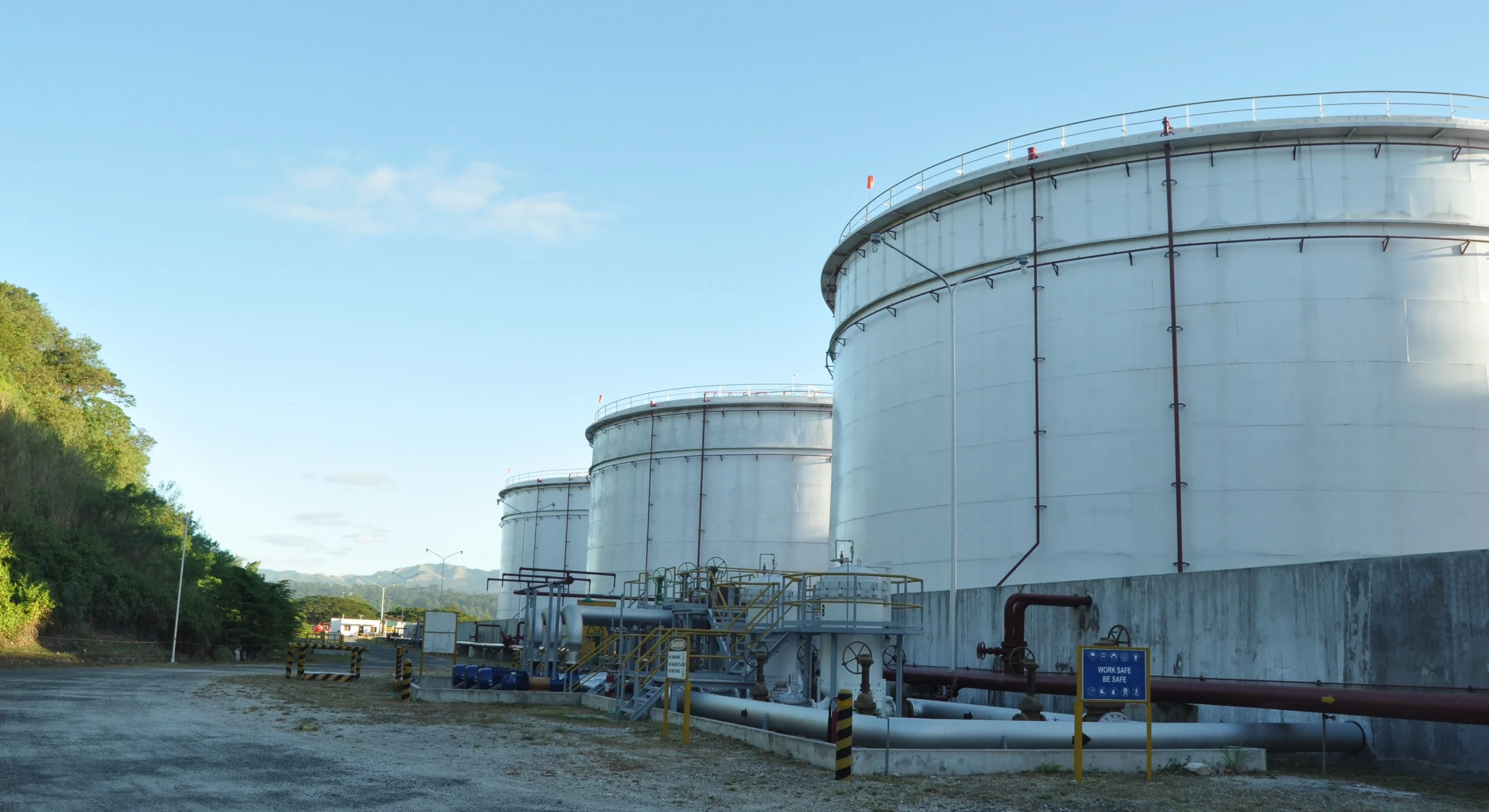

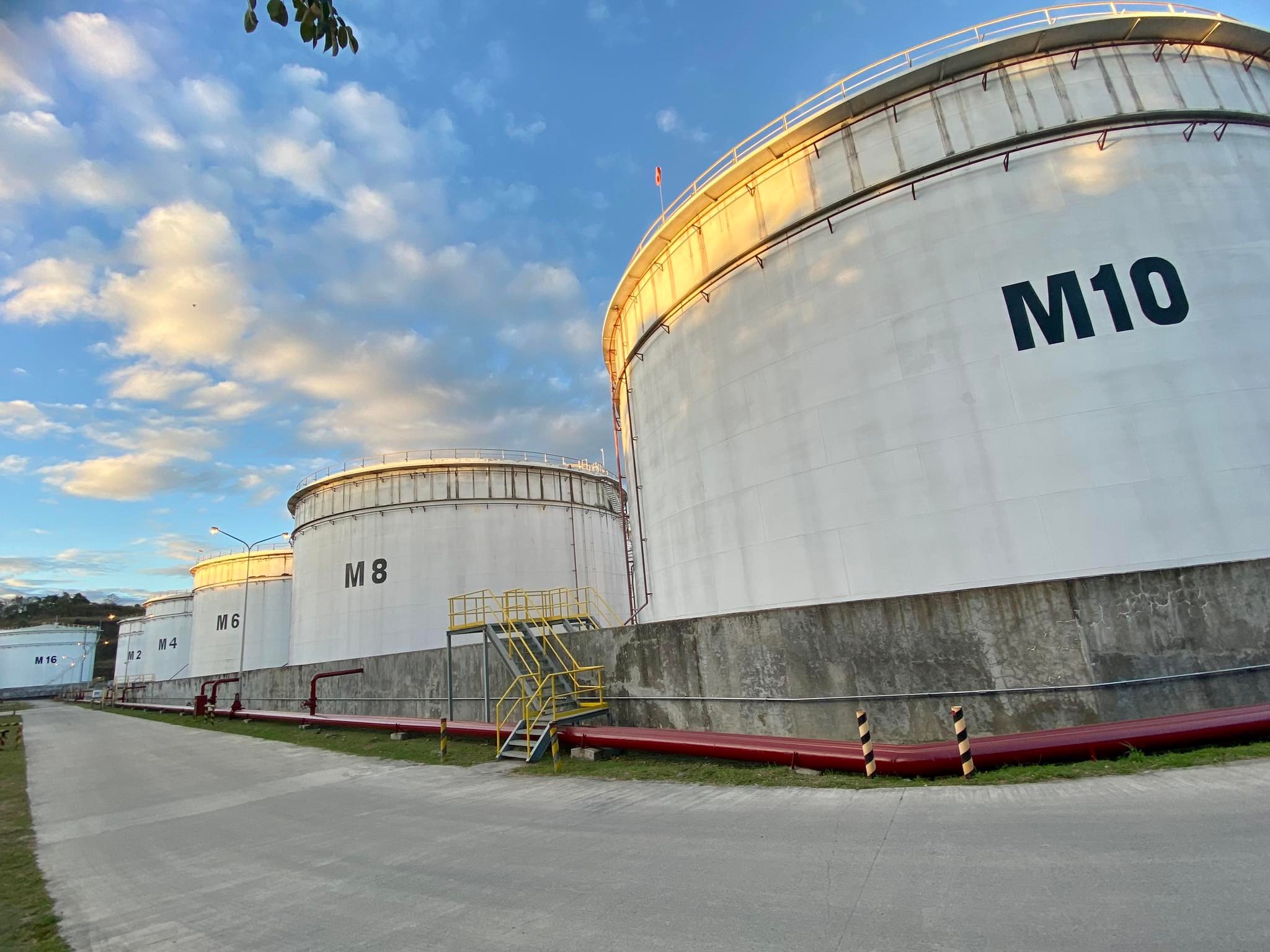

Storage Terminal
With a total capacity of 6.3 million barrels, PCSPC offers a versatile range of fuel storage solutions to meet diverse operational needs. Our facility includes tanks, designed for the safe, efficient, and cost-effective storage of petroleum and related products.
Storage capacities range from small tanks (2,000–10,000 barrels) to midsize (20,000–80,000 barrels), and large-scale tanks holding up to 200,000 barrels, providing flexibility for a wide variety of customer requirements
| TANK DIMENSION | CAPACITY |
|---|---|
| Smallest | 2,000 – 10,000 Barrels |
| Midsize | 20,000 – 80,000 Barrels |
| Largest | 180,000 – 200,000 Barrels |
| PRODUCTS HANDLED |
|---|
| Gasoil |
| JET-A1 |
| Mogas |
| Ethanol |
| Mogas |
| Others (CME/BIODIESEL/SLOPS/AVGAS/E-98) |
LEGEND:
CME = Coconut Methyl Ester or Coco-Biodiesel
E-98 = Denatured Ethanol as a Biofuel additive

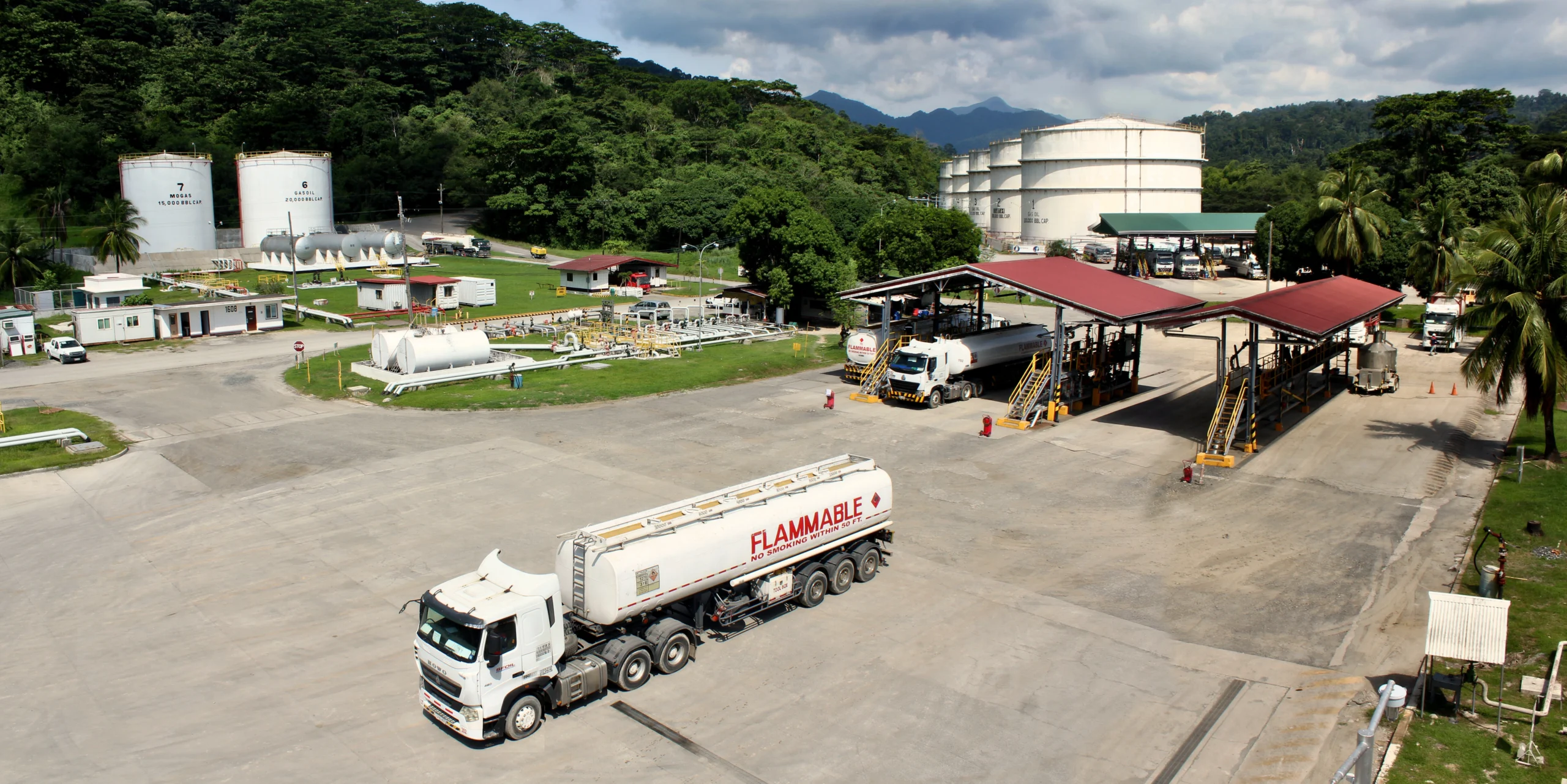

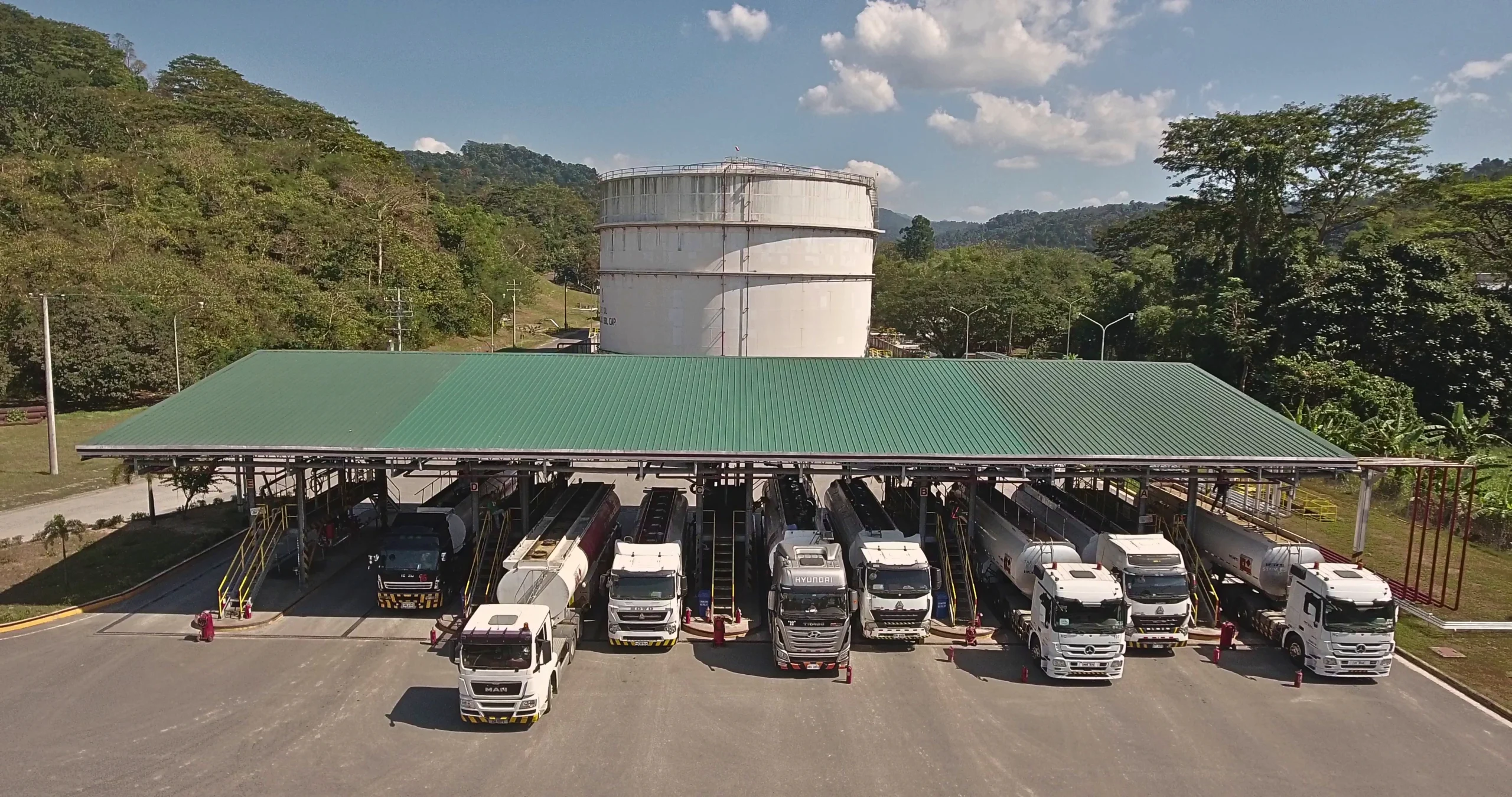

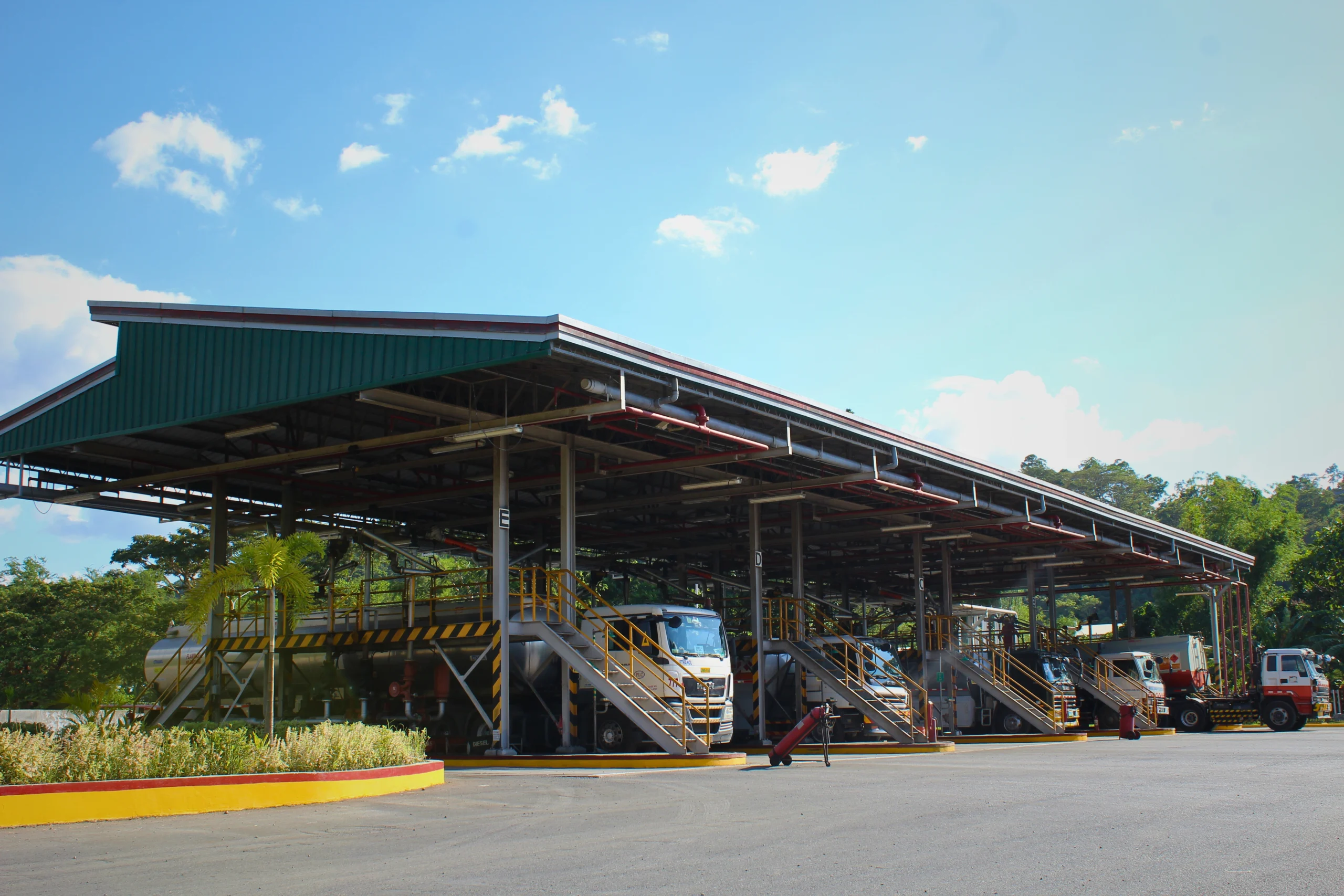

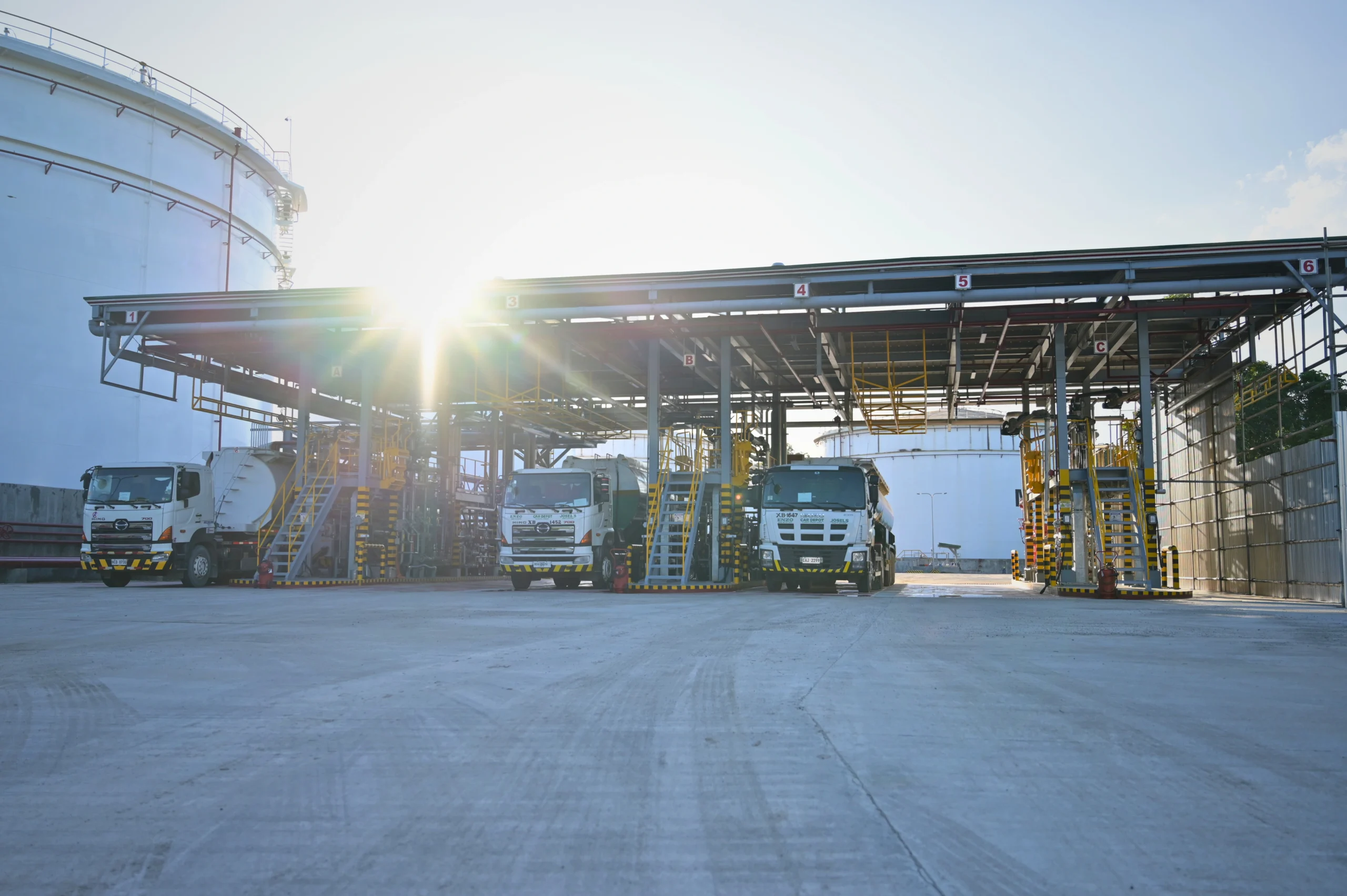

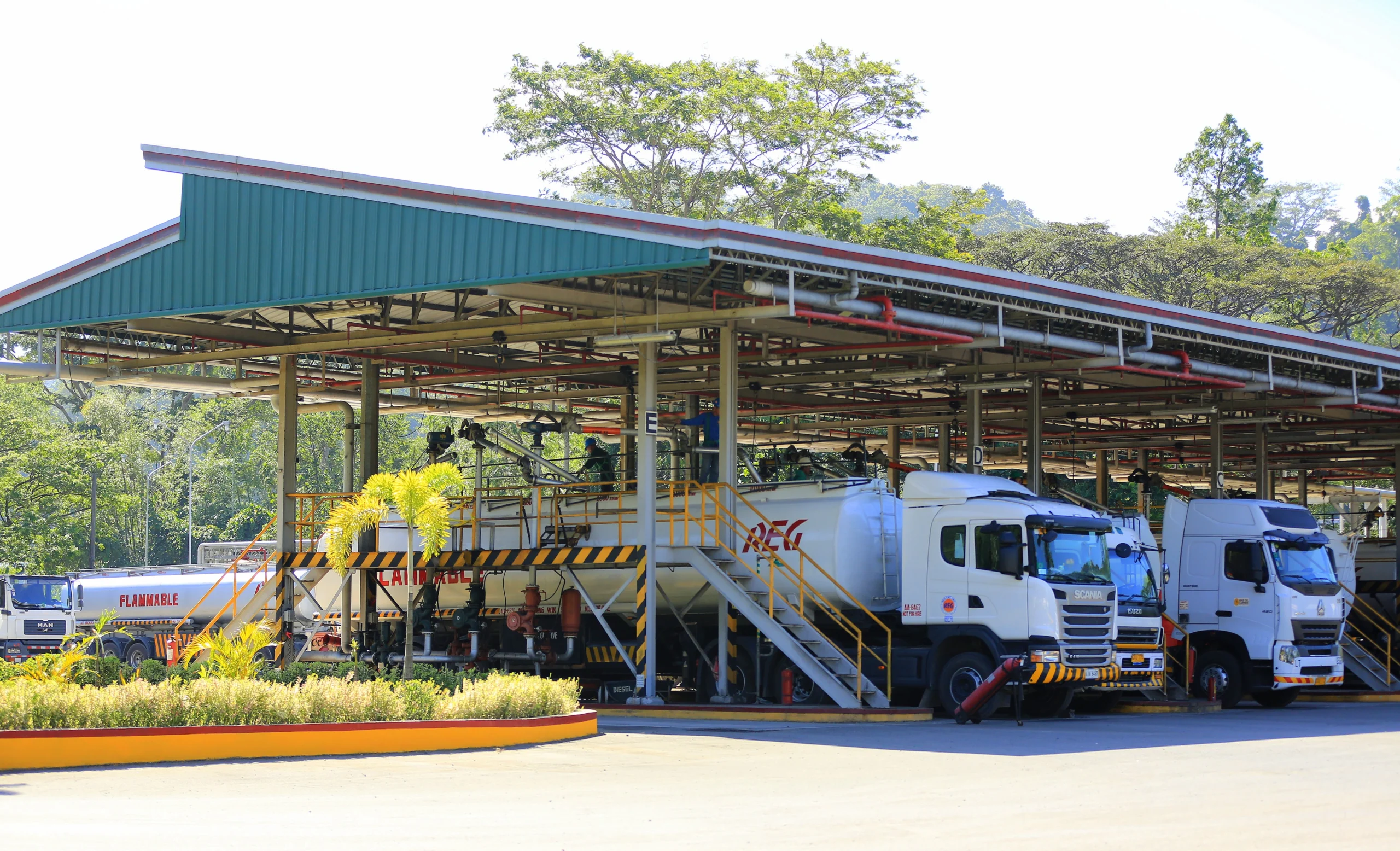

Tank Truck Loading
With a total of 8 loading gantries across three tank farms, our tank truck loading facilities is designed for high-volume, safe, and efficient operations.
Fitted with safety system in place, PCSPC has the capacity to serve as many as 250 tank trucks daily. Our focus on safety, efficiency, and reliability allows us to deliver seamless service to all our customers.
